In telecommunications, RS-232, Recommended Standard 232 is a standard originally introduced in 1960 for serial communication transmission of data. It formally defines signals connecting between a DTE (data terminal equipment) such as a computer terminal, and a DCE (data circuit-terminating equipment or data communication equipment), such as a modem.

The USB-16COM-RM USB to 16-Port Serial Adapter is designed for industrial applications to make serial port expansion quick and simple. Connecting to a USB port on your computer or USB hub, the USB 16COM Serial Adapter instantly adds sixteen RS-232 serial communication ports to your system. PCIe 4 and 8 Port RS232. 4, 8 and16 High Speed 16C950 Serial Port for PCIe / PCI Express expansion slots. StarTech.com PEX8S1050LP 8-Port PCI Express Serial Card - 16C1050 UART RS232 - PCIE Low Profile Bracket - DB9 Serial Card (PEX8S1050LP) Type: PCI Express to Serial Port Card External Ports: 8 x DB-9 (9 pin, D-Sub) Male Internal Ports: 1 x PCI Express x1 Male Operating Systems Supported: Windows CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2016, 2019 Linux 2.

Networking > Network Cards'/>
  • 8 Port RS-232 Serial Card
  • PCI Express (PCIe) Card
  • Includes 8 port cable DB9 connection
  • Data rate from 110 to 921,600 baud
  • Drivers for all popular operating systems including Windows 10,8,7, XP and 2000
  • Lifetime Warranty and Support

Description

PCI Express Card providing eight RS232 serial ports connected using 9 pin cables. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10.

Download

Customer Feedback

…I would recommend a BrainBoxes PCI Express card or PCMCIA card. Brainboxes seems to be a forward-thinking company that has very strong driver support across its entire range, including some products more than 10 years old.

Tim Long

Great products. Excellent quality.

ENZ Engineering, Berlin

Great products and brilliant to see still manufactured inUK

AI Automation

Fantastic job keep up the good work!

Vibra-Technics

I've purchased a number of these now and haven't had a problem with any of them.

Somfy Projects Rs-16x serial

Brainboxes are great products. Very stable & reliable.

Winner Hotel Software ‹›

Operating Systems

Tech Spec

Serial Port
Ports8
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
UARTBrainboxes 16C958
UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size32
Rx FIFO Size32
Operating DistanceEIA - RS232 Standard
Cable8 port cable (78 way D to 8x9 Pin Male)
Serial Port Settings
Max Baud Rate921,600
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx ModesPoint to Point
General
PCB Layers4
Form FactorStandard Height
Includes Printer PortNo
Galvanic IsolationNo
Power Consumption490mA @ 3.3V, 210mA @ 12V
Product Weight0.120 kg, 4.23 ounces
Product Dimensions165x120x18 mm, 6.5x4.7x0.7 inches
Packaged Weight1.028 kg, 36.26 ounces
Packaged Dimensions300x135x80 mm, 11.8x5.3x3.1 inches
GTIN (barcode)837324000825
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
Interface
PCI Express x1, x4, x8 & x16 lane slotsPCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Approvals

Microsoft Signed Drivers

Microsoft Hardware

Other

Related Products

PX-279PX-275UC-279PX-701PX-431
8 Port RS232 PCI Express Serial Card 9 Pin Connectors8 Port RS232 PCI Express Serial Card 25 Pin Connectors8 Port RS232 PCI Serial Port Card DB94 Port RS232 PCI Express Serial Card3 Port RS232 PCI Express Serial Card
8
RS232
Brainboxes 16C958
921,600
Standard Height
8
RS232
Brainboxes 16C958
921,600
Standard Height
8
RS232
Brainboxes 16C958
115,200
Standard Height
4
RS232
Oxford 950
921,600
Standard Height
3
RS232
Oxford 950
921,600
Standard Height
£ 399.95 (gbp)£ 399.95 (gbp)£ 399.95 (gbp)£ 265.00 (gbp)£ 175.00 (gbp)
DetailsDetailsDetailsDetails

Documents

FAQs

serial cards for PCI bus, PCI-X, PCIe PCI Express, PCMCIA, Serial to USB Koverter, Serial to PCMCIA Adapter. serial card for PCI Bus, ISA Bus, Extended PCI-X Bus. RS422 RS485 Konverter and 20mA serial card and 20mA Konverter. Parallel Card for den Universal PCI Bus. Parallel Card for den PCIe PCI Express Bus. VMWare vSphere Hypervisor (ESXi).

The following products are manufactured and distributed approx. since 1985. Well known customers like IBM, Logitech, PictureTel, NASA, Boeing and Lockheed Martin develop critical mission products using the following products.

The following asynchronous serial cards are offering 1, 2, 4, 8 or 16 serial ports for the PCI and/or PCIe Bus. PnP functionality enables automated configuration by BIOS or operating system.

Each serial port offers 128 Byte Buffer. This big Buffer in cooperation with the other high efficient components and the software drivers enable error free data transfer even on high speed.

The Flex-Clock System enables even Non-Standard Baud Rates.

Memory Mapped I/O increases data throughput under Windows.

Excellent hardware and software bundle. Enjoys excellent reputation!

Single Printer Port
Universal PCI Bus (32/64 Bit PCI and PCI-X Bus)

Rock solid printer ports supporting parallel printers and license dongles for the PCI bus. One of the first parallel card supporting PCI and PCI-X bus with excellent support for license Dongle under Windows, Linux and VMware, VMWare vSphere Hypervisor (ESXi).

  • Single parallel Printer Port (EPP/ECP)
  • 32/64 Bit PCI and PCI-X Bus, compatible with 3.3 Volt and 5 Volt (i.e. Dell, Compaq, IBM, Intel chassis)
  • License Dongles: Printer compatible with Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP (Hardlock), DESKey, Dallas iButton, Wibu, Eutron, Globe), PHANToM 6DOF devices from Sensable, ... Windows, Linux and VMware.
  • 30KV ESD Static Protection
  • IRQ Sharing
  • Plug & Play compatible
  • PCI Bus 2.3 compatible
  • CE and FCC Class B
  • DOS, Novell
  • Linux (32 Bit, 64 Bit)
  • VxWorks
  • SCO UnixWare® 5, 6, 7
  • VMware, VMware ESXi (ESXi 4.x or higher or vSphere Hypervisor)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000, Windows 2000 Server, Windows NT, Windows 95/98/Me
1x DB25F (Female)
Standard and Low Height Brackets included, Documentation in english, software drivers
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

Single Printer Port
PCIe & PCI Express Bus

Rock solid printer port supporting parallel printers and license dongles for the PCIe & PCI Express Bus. One of the first available and working card for PCIe bus. Plug and Play out of the box. Excellent support for license Dongle under Windows, Linux and VMware.

  • Single parallel Printer Port
  • PCIe & PCI Express Bus compatible
  • Bus design compatible with 1x, 4x, 8x, 16x lane expansion slots
  • Supports EPP/ECP under Windows
  • License Dongles: Printer compatible with Aladdin HASP (Hardlock), DESKey, Dallas iButton, Eutron, Globe, Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Sensable, Wibu, ...
  • IEEE1284
  • 30kv ESD Static Protection
  • Plug & Play compatible
  • CE and FCC Class B
  • DOS & Novell
  • Linux (32 Bit, 64 Bit) Plug&Play
  • SCO Unix (v5.0.4 or higher)
  • VMware, VMware ESXi (ESXi 4.x or higher or vSphere Hypervisor)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
1x DB25F (Female)
Standard and Low Height Brackets included, Documentation in english, software drivers
16x
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

1xRS-232, 1xLPT
PCIe & PCI Express Bus

Amazing combination of serial and printer port. Supporting parallel printers and license dongles for the PCIe & PCI Express Bus. Plug and Play out of the box. Excellent support for license Dongle.

  • Single serial port (RS-232)
  • Single parallel Printer Port
  • PCIe & PCI Express Bus compatible
  • Bus design compatible with 1x, 4x, 8x, 16x lane expansion slots
  • Parallel Port supports EPP/ECP under Windows
  • License Dongles: Parallel Port compatible with Aladdin HASP (Hardlock), DESKey, Dallas iButton, Eutron, Globe, Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Sensable, Wibu, ...
  • 30 kv ESD Static Parallel Port Protection
  • 15 kv ESD Surge Serial Port Protection
  • Plug & Play compatible
  • CE and FCC Class B
  • DOS & Novell (only parallel port)
  • Linux (32 Bit, 64 Bit) Plug&Play
  • SCO Unix (v5.0.4 or higher)
  • VMware, VMware ESXi (ESXi 4.x or higher or vSphere Hypervisor)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
1x DB9M (Male) and 1x DB25F (Female, parallel)
Standard and Low Height Brackets included, Documentation in english, software drivers
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

2xRS-232, 1xLPT
32/64 Bit PCI and PCI-X Bus, 33 - 133 Mhz

  • 2xRS-232 serial ports and one parallel Printer port (EPP/ECP)
  • Bus Speed 33 Mhz, 66 Mhz, 100 Mhz, 133 Mhz PCI / PCI-X
  • 32/64 Bit PCI and PCI-X Bus
  • Compatible with 3.3 Volt and 5 Volt (i.e. Dell, Compaq, IBM, Intel chassis)
  • Transmission speed (RS-232) up to 1 Megabaud !
  • Supports Printer and License Dongles e.g. Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP (Hardlock), DESKey, Dallas iButton, Wibu, Eutron, Globe, ...
  • 15KV ESD Static Protection (RS-232)
  • 30KV ESD Static Protection (parallel)
  • IRQ Sharing
  • Plug & Play compatible
  • PCI Bus 2.3 compatible (3.3 or 5 Volt)
  • CE and FCC Class B
  • DOS & Novell (only parallel port)
  • Linux (32 Bit, 64 Bit) Plug&Play
  • SCO Unix (v5.0.4 or higher)
  • VxWorks
  • QNX
  • OS/2 (Warp 4)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000, Windows 2000 Server, Windows NT, Windows 95/98/Me
2x DB9M (Male) and 1x DB25F (Female, parallel)
Standard and Low Height Brackets included, Documentation in english, software drivers, Cable (HD44M to 2x DB9M and 1x DB25F)
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

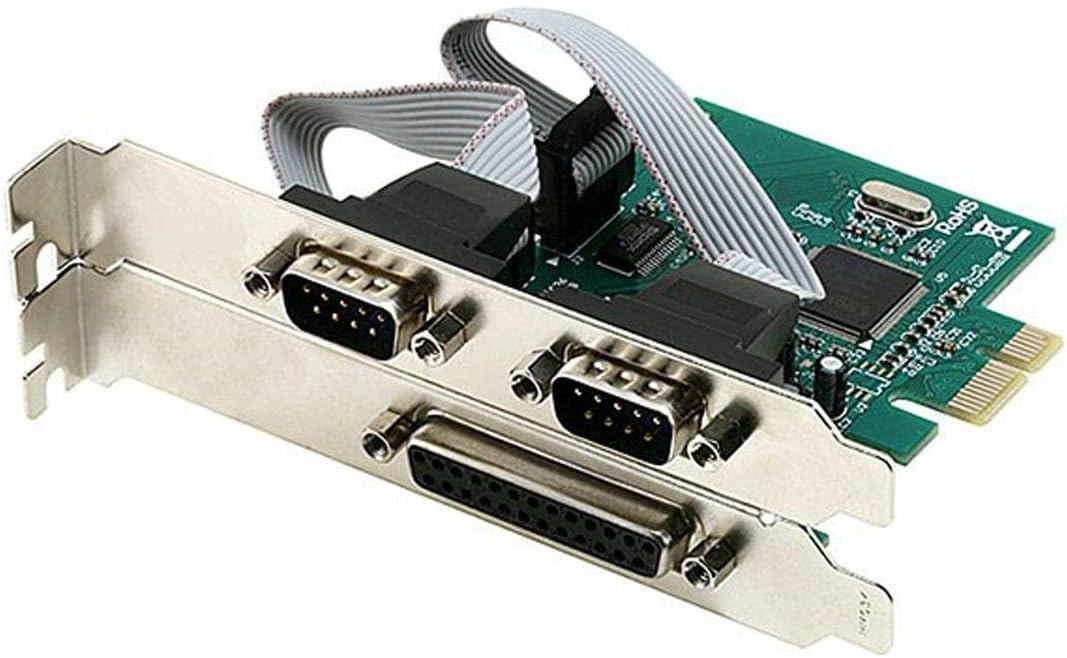

2xRS-232, 1xLPT
PCIe & PCI Express Bus

  • 2xRS-232 and one parallel Printer Port (EPP/ECP)
  • PCIe & PCI Express Bus
  • Transmission speed (RS-232) up to 1 Megabaud !
  • 15KV ESD Static Protection (RS-232)
  • 30KV ESD Static Protection (parallel)
  • IRQ Sharing
  • Plug & Play compatible
  • Supports Printer and License Dongles e.g. Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP (Hardlock), DESKey, Dallas iButton, Wibu, Eutron, Globe, ...
  • CE and FCC Class B
  • DOS & Novell (only parallel port)
  • Linux (32 Bit, 64 Bit) Plug&Play
  • SCO Unix (v5.0.4 or higher)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
2x DB9M (Male) and 1x DB25F (Female, parallel)
Standard and Low Height Brackets included, Documentation in english, software drivers, Cable (HD44M to 2x DB9M and 1x DB25F)
Standard and Low Profile mounting. Standard and Low Height Brackets included.

1xRS-232
PCI-X Bus 3.3 Volt

  • 1xRS-232 (Single Serial Port)
  • For PCI-X Bus with 3.3 Volt (i.e. Dell, Compaq, HP, IBM, Intel chassis)
  • Hardware Auto-Flow Control (times faster than software)
  • Transmission speed to 1 Megabaud !
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • PCI Bus 2.2 compatible (3.3 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000, Windows 2000 Server, Windows NT, Windows 95/98/Me
DB-9M (Male)
Standard and Low Height Brackets included, Documentation in english, software drivers
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

See also: 4x, 8x, 16x serial cards for PCI-X Bus

1xRS-232
PCIe & PCI Express Bus

  • 1xRS-232 (Single Serial Port)
  • PCIe & PCI Express Bus compatible
  • Bus design compatible with 1x, 4x, 8x, 16x lane expansion slots
  • Hardware Auto-Flow Control (times faster than software)
  • Transmission speed to 1 Megabaud !
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit) Plug&Play
  • SCO Unix (v5.0.4 or higher)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me. Compatible with Microsoft Serial Device Driver
DB-9M (Male)
Standard and Low Height Brackets included, Documentation in english, software drivers
Standard and Low Profile mounting. Standard and Low Height Brackets included.

See also: 2x serial cards for PCIe & PCI Express Bus
See also: 4x and 8x serial cards for PCIe & PCI Express Bus

2xRS-232
PCI-X Bus 3.3 Volt

  • 2xRS-232
  • For PCI-X Bus and 3.3 Volt (i.e. Dell, Compaq, HP, IBM, Intel chassis)
  • Hardware Auto-Flow Control (times faster than software)
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 1 Megabaud
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • PCI Bus 2.2 compatible (3.3 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
DB-9M
Documentation in english, software drivers

See also: 4x, 8x, 16x serial cards for PCI or PCI-X Bus

2xRS-232
PCI-Bus

  • 2xRS-232
  • Hardware Auto-Flow Control (times faster than software)
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed up to 1 Megabaud
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • PCI Bus 2.2 compatible (+5 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
DB-9M
Standard and Low Height Brackets included, Standard and Low Height Brackets included, Documentation in english, software drivers
MP2-PCI-FIFO supports Standard height mounting.
MP2-PCI-FIFO-LP supports Standard and Low Profile mounting (121,79 mm x 79,2 mm).

2xRS-232
PCIe & PCI Express Bus

  • 2xRS-232
  • PCIe & PCI Express Bus compatible
  • Bus design compatible with 1x, 4x, 8x, 16x lane expansion slots
  • Hardware Auto-Flow Control (times faster than software)
  • Transmission speed to 1 Megabaud !
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit) Plug&Play
  • VMware, VMware ESXi (ESXi 4.x or higher or vSphere Hypervisor) incl. Port-Splitting
  • SCO Unix (v5.0.4 or higher)
  • QNX
  • OS/2
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me. Compatible with Microsoft Serial Device Driver
Cable with 2x DB-9M
Standard and Low Height Brackets included, Cable, Documentation in english, software drivers
Standard and Low Profile mounting. Standard and Low Height Brackets included.

See also: 4x and 8x serial cards for PCIe & PCI Express Bus

Rs 16x Serial

4xRS-232, 8xRS232 or 16xRS232
Universal PCI (32/64 Bit PCI und PCI-X Bus, 3.3 oder 5 Volt)

  • 4xRS-232, 8xRS232 or 16xRS232
  • Hardware Auto-Flow Control (times faster than software)
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 1 Megabaud !
  • Plug & Play compatible
  • 15 kv ESD + HBM Surge Protection
  • 32/64 Bit PCI and PCI-X Bus
  • PCI Bus 2.3 compatible (3.3 or 5 Volt) (e.g Dell, Compaq, IBM, Intel chassis)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit) Plug&Play
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000, Windows 2000 Server, Windows NT, Windows 95/98/Me
Cables with 4x, 8x or 16x DB-9M (depending on card)
Cables, Documentation in english, software drivers
Cables (About 80 cm of length):
  • MP4-PCI-FIFO-R2: Complex Cable with 4 of DB9 Male included
  • MP8-PCI-FIFO: 1 x VHDCI68M to 8 of DB9 Male 3' Cables included
  • MP16-PCI-FIFO: 2 x VHDCI68M to 8 of DB9 Male 3' Cables included
  • MP4-PCI-FIFO-R2: Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.
  • MP8-PCI-FIFO, MP16-PCI-FIFO: Standard height mounting

4xRS-232, 8xRS-232, 16xRS-232
PCIe & PCI Express Bus

Rs 16x Serial Online

  • 4xRS-232 or 8xRS-232 or 16xRS-232
  • PCIe & PCI Express Bus compatible
  • Bus design compatible with 1x, 4x, 8x, 16x lane expansion slots
  • Hardware Auto-Flow Control (times faster than software)
  • Transmission speed to 1 Megabaud !
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • CE and FCC Class B
  • Power Management 1.0
  • Apple MAC OS 9 and higher (Plug & Play)
  • Linux (32 Bit, 64 Bit) Plug & Play
  • SCO Unix (v5.0.4 or higher)
  • VMware, VMware ESXi (ESXi 4.x or higher or vSphere Hypervisor)
  • QNX
  • OS/2 (Warp 4.0)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me. Compatible with Microsoft Serial Device Driver
Cables with 4x, 8x or 16x DB-9M (depending on card)
Standard and Low Height Brackets included, Cables, Documentation in english, software drivers:
  • MP4-PCIe-RS232: Complex Cable included (HD44M to 4 of DB9M)
  • MP8-PCIe-RS232-R2: 1 x VHDCI68M to 8 of DB9 Male 3' Cables included*
  • MP16-PCIe-RS232: 2 x VHDCI68M to 8 of DB9 Male 3' Cables included*
* Cable length approx. 90cm. Also available approx. 150cm (#410213) and approx. 210cm (#410214) at extra cost.
  • MP4-PCIe-RS232: Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.
  • MP8-PCIe-RS232-R2: Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.
  • MP16-PCIe-RS232: Standard height mounting

1xRS-422, 1xRS-485
PCI-Bus

  • 1xRS-422/485 port
  • TX+, TX-, R+ and RX-
  • 2500 Volt Galvanically Isolated signals TX+, TX-, RX+, RX- and Ground
  • 422 and 485 switchable
  • RS485 Full / Half Duplex support
  • RS-485 Auto-Switch (Auto-Gating) for automatically switching between Master/Slave mode
  • Echo suppression by setting an external jumper (On/Off).
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 921kbps, optional up to 10 Mbps
  • Onboard switch selectable 120 ohm terminators (user provided terminators are optional)
  • Multiple boards may be installed for additional serial ports
  • Failsafe biasing
  • 25 kv ESD HDM Surge Protection
  • Plug & Play compatible
  • PCI Bus 2.2 compatible (+5 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit) PnP
  • FreeBSD (v9 PnP, else please call)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000, Windows 2000 Server, Windows NT, Windows 95/98/Me
DB9-M (Male)
Standard and Low Height Brackets included, Documentation in english, software drivers
Supports Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

1xRS-422/485
PCI-X Bus 3.3 Volt

  • 1xRS-422/485 (Single Serial Port)
  • For PCI-X Bus and 3.3 Volt (i.e. Dell, Compaq, HP, IBM, Intel chassis)
  • 2500 Volt isolated signals TX+, TX-, RX+, RX- and Ground
  • 422 and 485 switchable
  • RS485 Full / Half Duplex support
  • RS-485 Auto-Switch (Auto-Gating) for automatically switching between Master/Slave mode
  • Echo suppression by setting an external jumper (On/Off).
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 921Kbps (optional 15 Megabaud)
  • Plug & Play compatible
  • 15 kv ESD Surge Protection
  • PCI Bus 2.2 compatible (3.3 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
DB-9M (Male)
Standard and Low Height Brackets included, Documentation in english, software drivers
Online
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

*Please also consult the manual.

2xRS-422, 2xRS-485
PCI-Bus

  • 2xRS-422/485 ports
  • TX+, TX-, R+ and RX-
  • 422 and 485 switchable
  • RS485 Auto-gating of the transmitter via hardware.
  • RS485 Full / Half Duplex support
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 460kbps, optional up to 10 Mbps
  • Onboard switch selectable 120 ohm terminators (user provided terminators are optional)
  • 15 kv ESD HDM Surge Protection
  • Plug & Play compatible
  • PCI Bus 2.2 compatible (+5 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Windows 2003 Server (32 Bit, 64 Bit), Windows 2000, Windows 2000 Server, Windows NT, Windows 95/98/Me
DB9M (2x DB-9 Male)
Documentation in english, software drivers

*Please also consult the manual.

1xRS-422/485
PCIe & PCI Express Bus

  • 1xRS-422/485
  • Bus design compatible with x1, x4, x8, x16 lane expansion slots
  • Transmission speed to 921kbps
  • 2500 Volt isolated signals TX+, TX-, RX+, RX- and Ground
  • TX+, TX-, RX+, RX-, RTS+, RTS-, CTS+, CTS+
  • 422 and 485 per port switchable
  • RS485 Auto-gating of the transmitter via hardware.
  • RS485 Full / Half Duplex support
  • Local Echo suppression by setting an external jumper (On/Off)
  • Slew Rate controlled 10 Mbaud RS422/RS485 Transceiver
  • Support up to 921k baud without clock change
  • Maximum Baud Rate 10 Megabaud (requires clock change)
  • IRQ Sharing, all ports share one interrupt line !
  • Onboard switch selectable 120 ohm terminators
  • Failsafe biasing
  • Plug & Play compatible
  • CE and FCC Class B
  • Linux (32 Bit, 64 Bit) PnP (please call to confirm)
  • FreeBSD PnP (please call to confirm)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
1x DB9-M (Male)
Standard and Low Height Brackets included, Documentation in english, software drivers
Supports Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.

2xRS-422/485
PCIe & PCI Express Bus

  • 2xRS-422/485
  • Bus design compatible with x1, x4, x8, x16 lane expansion slots
  • TX+, TX-, RX+, RX-, RTS+, RTS-, CTS+, CTS+
  • 422 and 485 per port switchable
  • RS485 Auto-gating of the transmitter via hardware.
  • RS485 Full / Half Duplex support
  • Local Echo suppression by setting an external jumper (On/Off)
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 921kbps (optional up to 10 Mbps)
  • Onboard switch selectable 120 ohm terminators
  • Plug & Play compatible
  • CE and FCC Class B
  • Linux (32 Bit, 64 Bit) Plug&Play
  • SCO Unix (v5.0.4 or higher)
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
2x DB9M
Documentation in english, software drivers
Standard Profile mounting

4xRS-422, 4xRS-485 Isolated
PCI-Bus

  • 4xRS-422/485
  • Isolated signals TX+, TX-, RX+, RX- and Ground
  • 422 and 485 switchable
  • RS-485 Auto-Switch (Auto-Gating) for automatically switching between Master/Slave mode
  • RS485 Full / Half Duplex support
  • IRQ Sharing, all ports share one interrupt line !
  • Transmission speed to 460kbps
  • Plug & Play compatible
  • 25 kv ESD Surge Protection and 3KV Isolated DC-DC Convertor
  • PCI Bus 2.2 compatible (+5 Volt)
  • CE and FCC Class B
  • Power Management 1.0
  • Linux (32 Bit, 64 Bit) Plug&Play
  • Windows 10 (32 Bit, 64 Bit), Windows 8 (32 Bit, 64 Bit), Windows Server 2012 (R2), Windows 7 (32 Bit, 64 Bit), Windows Server 2008 (32 Bit, 64 Bit), Windows Vista (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit), Embedded XP, Windows 2003 Server (32 Bit, 64 Bit), Windows 2000 Server, Windows 2000, Windows NT, Windows 95/98/Me
4xDB9 (Male)
Documentation in english, software drivers, Cable with DB-9 (DB25M to 4xDB9 Male)
Standard and Low Profile mounting (121,79 mm x 79,2 mm). Standard and Low Height Brackets included.
*Please also consult the manual.

2xRS232, 4xRS232 Isolated
PCI-Bus

  • 2 or 4 RS-232 ports
  • 16 bytes buffer (FIFO) per port and direction
  • Up to 115,2 Kbps (Normal Speed Mode) or 460 Kbps (High Speed Mode)
  • 2500 Volt Optical Isolation
  • PCI Bus 2.2 Compatible (+5 Volt)
  • CE and FCC Class B
  • Up to four cards in one PC
  • Linux
  • OS/2
  • Windows NT, Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 95/98/Me

Rs 16x Serial Key

DB-9 (Male). The SCOM4 includes Cable with DB-9 Male (optional DB-25 Male)

Rs 16x Serial 2

Documentation in english, software drivers
